Why Does My TurfTech T-4600E Lose Drive Power on Inclines?

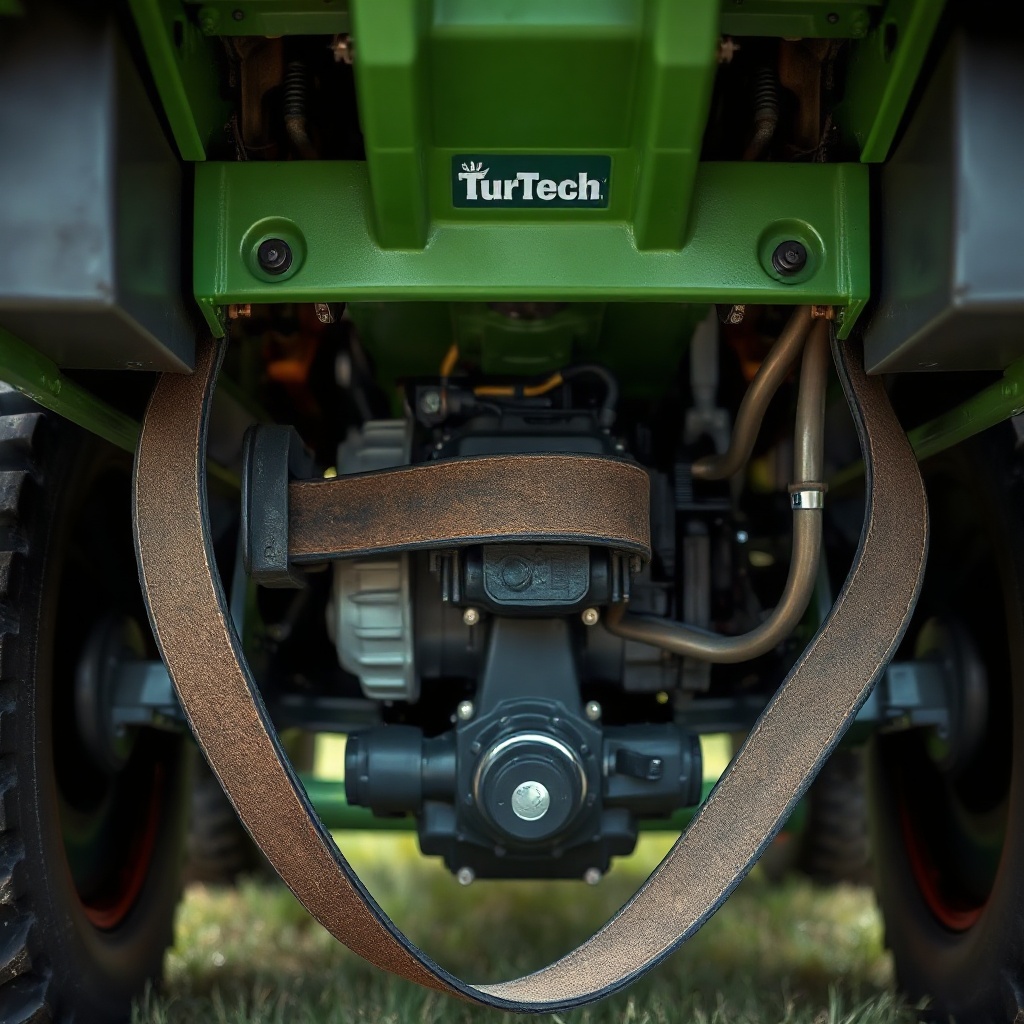

A common complaint among TurfTech T-4600E owners is a sudden loss of traction or forward motion when mowing slopes. This usually stems from the hydrostatic transmission’s inability to maintain pressure under load. The primary culprit is a worn drive belt slipping on the engine pulley or a failing hydrostatic pump. On the T-4600E, the sealed hydrostatic unit uses a specific viscosity oil (typically 20W-50 synthetic), and low fluid levels can cause cavitation, leading to power loss. Begin by inspecting the drive belt for glazing or fraying; if the belt is shiny on the sides, it is slipping. Replace it with a genuine TurfTech belt (part number TT-4612B) costing about $38.00. If the belt appears fine, check the transmission oil level via the dipstick near the rear axle. Low oil often indicates a leak, which you can cross-reference with our TurfTech T-4600E Engine Oil Leak: Diagnosis and Repair Guide for confirmation, though transmission oil leaks are distinct and require seal replacement.
What Causes the Transmission to Make a Whining Noise When Moving?
A high-pitched whine from the rear of the TurfTech T-4600E indicates air in the hydraulic system or low fluid level. This noise is especially noticeable when turning or starting from a stop. The T-4600E uses a hydrostatic transmission (model HTD-340) that relies on a closed-loop oil circuit. If the transmission has overheated from prolonged use in tall grass, the oil can degrade and create air bubbles. Start by parking the mower on level ground, engaging the parking brake, and running the engine at half throttle for 2-3 minutes with the transmission in neutral to purge air. If the whine persists, check the transmission oil filter (part number TT-4615F, approximately $22.00) and replace it if clogged. Avoid using non-specified oils, as they can foam and exacerbate whining. For persistent issues, examine the cooling fins on the transmission housing for debris buildup. Clean them with compressed air—mud and grass clippings insulate the unit, causing overheating and fluid breakdown. If noise continues after fluid change and filter replacement, internal pump wear may be the cause, requiring professional rebuilding or replacement (costing $400–$600).
How Do I Fix a TurfTech T-4600E That Won’t Move Forward or Reverse?
When the T-4600E refuses to move in either direction, the issue is often mechanical rather than hydraulic. First, ensure the drive pedal linkage is not stuck or broken. The pedal connects to a control arm near the transmission; inspect the return springs and pivot points for rust or obstruction. If the pedal moves freely but no motion occurs, the drive belt may have snapped or jumped off the pulley. Locate the belt under the mower deck; a broken belt will be obvious. Replacement involves removing the deck belt shield and using a spring tool to release tension. A new drive belt costs about $42.00. If the belt is intact, the problem may be a sheared key on the transmission input shaft—common on the T-4600E when the blades hit a solid object. Remove the transmission pulley and inspect the key; replace it if damaged (part TT-4627K, $8.00). For units with motion but no drive, check the parking brake adjustment; a partially engaged brake drags and prevents movement. Refer to our TurfTech T-4600E Brake System Adjustment: Step-by-Step Guide for precise calibration. If all these check out, the transmission’s internal seals may have failed, allowing fluid bypass—this usually requires a replacement hydrostatic unit, costing between $700 and $900.
What Are the Symptoms of a Failing Hydrostatic Pump in the T-4600E?
The hydrostatic pump is the heart of the T-4600E’s drive system. Symptoms of failure include: jerky motion, inability to maintain speed, excessive heat from the transmission area, and dark or burnt-smelling transmission fluid. On the T-4600E, the pump is integrated with the motor in a single sealed unit. A failing pump often shows measurable loss of pressure. You can test this with a flow meter attached to the test port on the transmission; normal pressure should exceed 800 psi when the bypass valve is closed. If pressure is below 600 psi, the pump’s swash plate or pistons are worn. In such cases, fluid change alone will not resolve the issue. The most cost-effective repair is to replace the entire transmission assembly. Before doing so, verify that the problem is not a blocked suction screen inside the transmission; this requires partial disassembly. For safety, always disconnect the spark plug and allow the unit to cool. Some owners opt for a remanufactured transmission (around $550–$650) versus new ($1,200), but ensure compatibility with the T-4600E’s mounting bracket. A detailed diagnosis of engine issues that could mimic transmission problems is available in our TurfTech T-4600E Electric Start Motor: Testing and Diagnosis Guide.
Why Does My T-4600E Transmission Leak Oil from the Axle Seals?

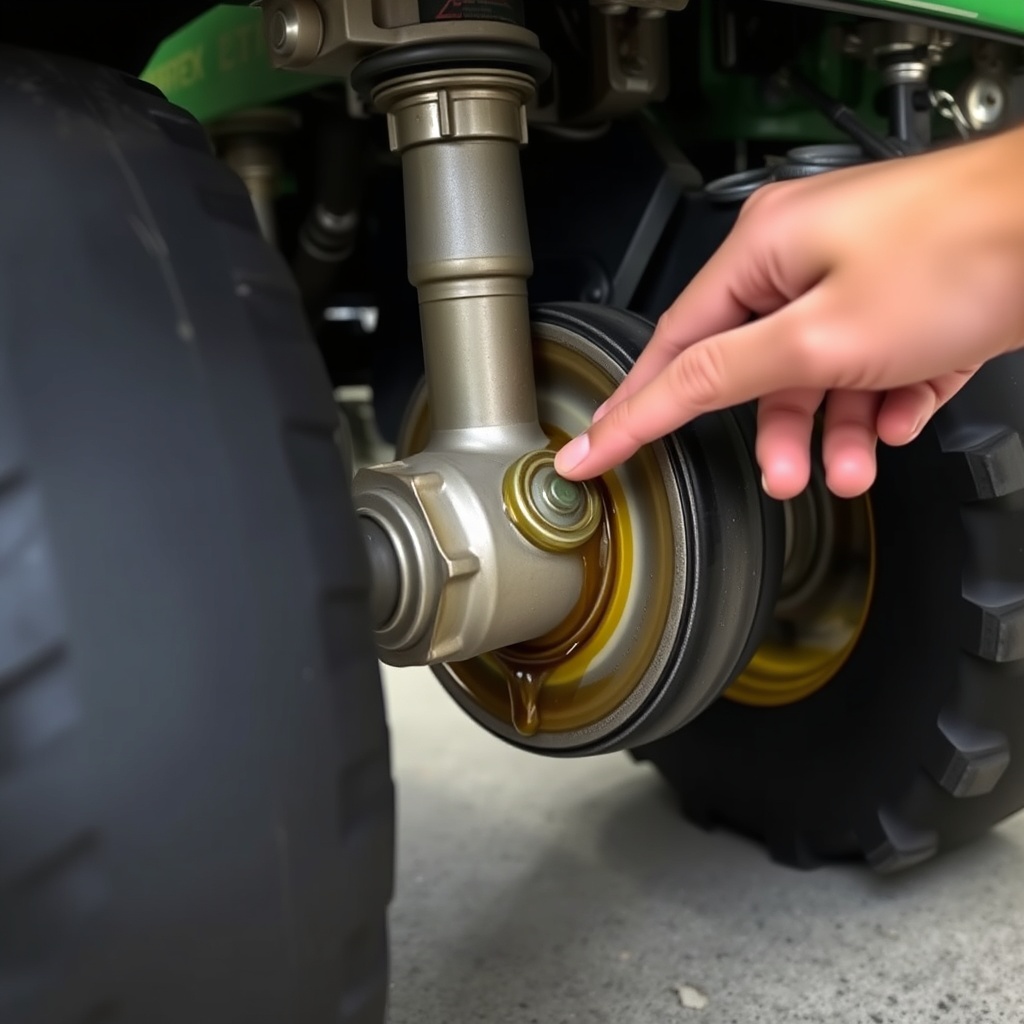

Oil leaking from the axle seals is a frequent issue on the TurfTech T-4600E, especially on units with over 300 hours of use. The axle seals (part number TT-4640S, $15.00 each) can dry out or become damaged by debris. When they fail, transmission fluid leaks onto the wheels and driveway. To confirm the source of the leak, clean the area around the axle housing with brake cleaner, then run the mower for 5 minutes. If fresh oil appears at the seal lip, replacement is necessary. Replacing axle seals requires removing the wheel, hub, and circlip; a seal puller and press are needed for proper installation. Note that if the axle shaft has a groove worn by the old seal, the new seal may leak quickly—inspect the shaft for scoring. If scored, replace the axle shaft (part TT-4642A, $60.00) or install a speedi-sleeve. Another leak point is the transmission case seam; if oil weeps from the split line, the gasket or sealant has failed. This typically requires transmission removal and resealing with anaerobic sealant. For cases where both engine and transmission leaks appear, consult the TurfTech T-4600E Engine Oil Leak: Diagnosis and Repair Guide to differentiate between the two systems.
What Is the Correct Drive Belt Tension and How Do I Check It?
Incorrect drive belt tension causes slipping, noise, and premature wear. On the TurfTech T-4600E, the drive belt should have 1/2 inch of deflection at the midpoint when pressed with 10 lbs of force. The tension is maintained by a spring-loaded idler pulley. To check: park on level ground, lower the deck, and remove the belt cover. Press down on the belt at the longest span; it should deflect no more than 5/8 inch. If it is too loose, the idler spring may be weak or the belt stretched. Replace the spring if it appears elongated (part TT-4618S, $12.00). For belt adjustment, the T-4600E uses a manual tensioning procedure: loosen the idler pulley bolt, pivot it to increase tension, then retighten. Over-tightening can damage bearings and cause the belt to chirp. If you also need to adjust the deck belt, which uses a separate tensioning mechanism, see our TurfTech T-4600E Deck Belt Tension Adjustment: Step-by-Step Guide for deck-specific procedures. A properly tensioned drive belt ensures full power transfer from the engine to the transmission.
| Symptom | Likely Cause | Estimated Repair Cost (USD) | Part Number |
|---|---|---|---|
| Loss of power on hills | Worn drive belt or low transmission fluid | $38–$60 | TT-4612B |
| Whining noise | Air in system or clogged filter | $22–$50 | TT-4615F |
| No motion forward/reverse | Broken belt or sheared key | $42–$80 | TT-4627K |
| Leaking axle oil | Worn axle seal | $15–$75 | TT-4640S |
| Jerky motion/overheating | Failing hydrostatic pump | $550–$1,200 | Transmission assembly |
What Owners Say About TurfTech T-4600E Transmission Reliability
Owner feedback on forums and review sites shows a divided opinion on the T-4600E’s transmission. Many owners appreciate the smooth, infinite speed control offered by the hydrostatic system; one long-term user reported 400 hours without major issues after regular belt changes. However, a significant number of owners in the 300–500 hour range complain about sudden seal failures and fluid leaks. The most common praise centers on the ease of belt replacement and the availability of affordable parts. Critiques often highlight the transmission’s sensitivity to overheating during heavy mulching; some owners recommend installing an auxiliary cooling fan for extensive use. Several DIY owners have successfully rebuilt their transmissions by following online guides, but caution that the sealed design makes it challenging without a shop press. Overall, the consensus is that the T-4600E is reliable for residential use but may require proactive maintenance on the drive belt and fluid changes every 100 hours. For those considering a switch from bagging to mulching, read our TurfTech T-4600E Mulching vs Bagging: Cutting Performance Comparison to see how the transmission handles different loads. Also, to keep the engine running clean, refer to the TurfTech T-4600E Air Filter Maintenance: Cleaning and Replacement Guide.
Frequently Asked Questions
Q: How often should I change the transmission fluid in my T-4600E?
A: TurfTech recommends changing the transmission fluid every 100 hours of operation or once per season, whichever comes first. Use only 20W-50 synthetic hydrostatic oil (capacity 2.5 quarts).
Q: Can I use automotive transmission fluid in the T-4600E?
A: No. The T-4600E requires a specific hydrostatic transmission oil (part TT-4601O, $18.00 per quart). Automotive fluids lack the anti-foaming and high-temperature properties needed and will damage seals.
Q: Why does my mower move slowly in both directions?
A: Slow movement often indicates low transmission fluid, a clogged suction screen, or a partially engaged parking brake. Check fluid level first, then inspect the brake adjustment. If neither helps, the transmission may have internal bypass.
Q: Is it safe to change the transmission filter without draining the fluid?
A: Yes, but expect some fluid loss. Place a drain pan under the filter area. Replace the filter quickly to minimize spillage. Top off fluid after installation and run the mower to purge air.
Q: How do I bleed air from the T-4600E transmission?
A: Run the engine at idle with the transmission in neutral for 2-3 minutes, then slowly cycle the drive pedal forward and reverse several times. This usually purges trapped air. Repeat if whining persists.
Q: What is the warranty on the TurfTech T-4600E transmission?
A: The hydrostatic transmission is covered by a 3-year limited warranty from the date of purchase. It covers defects in materials but not damage from abuse, improper fluid, or lack of maintenance. Proof of service records is required.
