Why Does the TurfTech T-4600E Need Regular Fuel Filter Changes?
Dirt, rust, and varnish accumulate in the fuel over time, and the T-4600E’s engine is sensitive to contamination. A clogged fuel filter restricts fuel flow, causing hard starting, surging, and poor acceleration during mowing. Regular replacement — typically every 100 operating hours or once per season — prevents these issues and keeps the engine running smoothly. This guide covers the tools you need, the exact step-by-step process, and expert tips to avoid common mistakes.
Tools and Parts Required
- New fuel filter (OEM part number TTF-1001 or equivalent inline type, $8.99 at TurfTech dealers).
- Needle-nose pliers (TurfTech T-4600E Carburetor Cleaning: Step-by-Step Guide and Tips also uses these for fuel line removal).
- Fuel line clamp or small zip tie to pinch the line temporarily.
- Rag or small absorbent pad (spill containment).
- Safety glasses and disposable gloves (fuel is a skin irritant).
How Do I Access the Fuel Filter on the T-4600E?

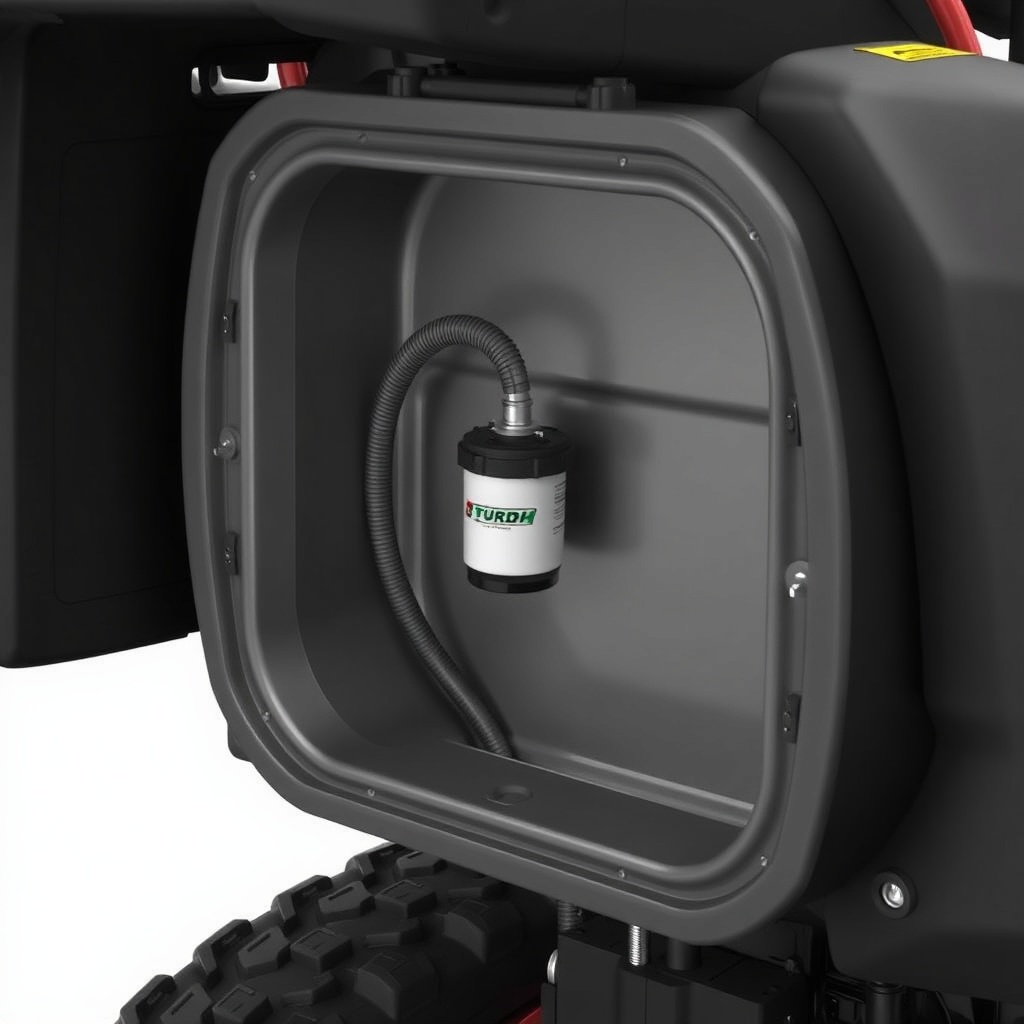

The fuel filter is located on the lower-left side of the engine, along the fuel line between the tank and the carburetor. It is housed beneath a small plastic access panel secured by two Phillips-head screws. Turn the ignition key to OFF and remove the spark plug wire to prevent accidental starting. Clear away grass clippings or debris from around the access panel. Remove the two screws and lift the panel to expose the filter, which is inserted inline between two rubber hoses.
What If the Filter Is Obstructed by Excess Fuel Line?
If the fuel line has been replaced previously or is longer than stock, you may need to gently pull more slack into the compartment. Use a small flathead screwdriver to pry the retention clip (if equipped) away from the filter body. Never pull the line directly at the filter neck; instead, hold the rubber hose near the mid-section to avoid collapsing it.
What Is the Correct Procedure to Remove the Old Filter?
First, use a fuel line clamp or a zip tie tightened around the hose closest to the fuel tank to stop fuel flow. This prevents gravity-fed fuel from spilling. Place a rag under the filter to catch any residual fuel. Using needle-nose pliers, squeeze the spring clamps at both ends of the filter and slide each clamp back about 1/2 inch along the hose. Then grasp the filter body and twist while pulling outward. Do not pull on the hose itself, as this can damage the rubber. Waste a few drops into the rag. Properly dispose of the old filter and fuel-soaked rag according to local hazardous waste guidelines.
How Do I Install the New Filter Correctly?
Check the new filter’s directional arrow (if present) — most filters indicate fuel flow from the tank to the carburetor. Align the arrow pointing toward the carburetor. Slide the filter’s barbed ends into the rubber hoses about 1/4 inch. Then use your thumb to push the filter fully into the hose until you feel it seat snugly. Re-position the spring clamps so they are centered over the filter’s barb. Give a gentle tug to ensure the hoses do not slip off. After installation, remove the fuel line clamp or zip tie, reattach the spark plug wire, and start the engine to check for leaks. Let it idle for one minute without moving the machine, then visually inspect the filter area for drips.
Comparing OEM vs. Aftermarket Filters for the T-4600E
| Feature | OEM TTF-1001 | Aftermarket Universal |
|---|---|---|
| Price (USD) | $8.99 | $3.50–$5.00 |
| Micron rating | 15 micron | 20–30 micron (varies) |
| Barb diameter | 1/4 inch | May require adapter or extra hose |
| Included spring clamps | Yes (factory fit) | No (may include zip ties) |
| Risk of fuel line damage | Low (exact fit) | Moderate (if forced) |
| Warranty coverage | Preserves TurfTech warranty | Voided if improper fit leads to leak |
Severity: A poor-fitting aftermarket filter can cause a fuel leak, engine fire, or void of warranty. Always prefer OEM for the T-4600E unless specified in the TurfTech service manual.
What Owners Say About Fuel Filter Replacement
Experienced TurfTech T-4600E owners on forums report that changing the fuel filter is a 10-minute job once you know the access panel location. One owner from Ohio noted that after skipping a season, his mower would stall randomly on slopes — the new filter restored full power. Another Australian owner commented that after a TurfTech T-4600E Cutting Height Adjustment: Step-by-Step Guide for Optimal Deck Height, he noticed a slight hesitation that was cured by a fresh filter. A third owner stressed that using a cheap aftermarket filter caused constant surging because the micron rating was too coarse. Overall, the consensus is that the OEM filter is reliable, and the process is straightforward for any DIY mechanic.
Frequently Asked Questions
1. How often should I replace the fuel filter on the TurfTech T-4600E?
Replace it every 100 operating hours or once per season — whichever comes first. If you use ethanol-blended fuel, consider replacing it at 50 hours.
2. Can I clean the old fuel filter instead of replacing it?
No. The filter element is sealed and cannot be cleaned effectively. Replacing it is the only safe option to ensure proper fuel flow.
3. What happens if I install the filter backward?
Most aftermarket filters have a flow direction arrow. Installing it backward restricts fuel flow, causing the engine to run lean, overheat, and potentially stall. Double-check the direction.
4. Does the TurfTech T-4600E Battery Voltage Drain Test: Diagnosing Parasitic Draw require the fuel filter to be removed?
No, the battery drain test is unrelated. The filter is only removed during fuel system maintenance.
5. My filter looks clean but the engine still sputters. Could it be the carburetor?
Yes, a clogged carburetor is a common cause. Refer to the TurfTech T-4600E Carburetor Cleaning: Step-by-Step Guide and Tips for cleaning steps.
6. Where can I buy the OEM fuel filter for the T-4600E?
Purchase from authorized TurfTech dealers, Amazon, or your local equipment shop. Expect the price to be around $8.99 to $12.00 for the OEM part.
