Why Would the TurfTech T-4600E Carburetor Need Cleaning?
The TurfTech T-4600E is a robust stand-on mower, but its fuel system is vulnerable to ethanol-blended gasoline. Over time, varnish and gum deposits clog the carburetor’s tiny jets and passages. Symptoms include hard starting, rough idle, stalling under load, or a black, sooty exhaust. Cleaning the carburetor restores fuel flow and air-fuel mixture, often saving owners a costly replacement. For related drivability fixes, consult the TurfTech T-4600E Steering System Alignment: Step-by-Step Guide if vibration or tracking issues persist after cleaning.
What Tools and Parts Do You Need for Carburetor Cleaning?
Before beginning, gather the following items. Most are available at hardware stores or online for under $45 total. Using the correct tools prevents damage to delicate carburetor components.
- Socket set: 10 mm, 12 mm, and 13 mm sockets with ratchet.
- Flathead and Phillips screwdrivers (small sizes for jets).
- Carburetor cleaner spray (specifically for small engines—avoid brake cleaner that can damage seals).
- Compressed air can (or air compressor with nozzle).
- New gasket kit (part number 4600E-CG-1, approximately $18.99 at lawn equipment suppliers).
- Small wire brush and pick set (to clear hardened deposits).
- Safety glasses and nitrile gloves.
- Fuel line clamp (to prevent fuel spillage).
- Rags and a catch pan.
A typical carburetor cleaning session costs around $25 in materials if you already own basic tools. Always check the air filter and fuel filter beforehand; a dirty filter can mimic carburetor symptoms. Refer to the TurfTech T-4600E Deck Belt Replacement: Step-by-Step Guide for belt maintenance that also affects engine load.
How Do You Remove the TurfTech T-4600E Carburetor Safely?
Proper removal prevents fuel spills and damage to throttle linkages. Follow these steps:
- Disconnect the battery: Remove the negative terminal wire to avoid accidental starts.
- Drain the fuel: Turn the fuel valve to “Off,” disconnect the fuel line from the carburetor, and let residual fuel drain into a container. Dispose of old fuel properly.
- Remove the air filter housing: Unclip the two tabs and lift off the cover. Take out the foam and paper filter elements. Set them aside.
- Label and disconnect linkages: Use a smartphone photo to document the throttle and choke cables. Unhook the springs and slide the cables off their mounts.
- Unbolt the carburetor: Two 10 mm bolts secure it to the intake manifold. Gently wiggle the carburetor free. Place it on a clean workbench.
- Remove the bowl: Unscrew the large drain screw at the bottom (12 mm socket). The float bowl will come off—catch any remaining fuel.
If the carburetor does not slide off easily, do not pry it with a screwdriver. Instead, tap the intake manifold lightly with a rubber mallet. For related engine performance issues, see the TurfTech T-4600E Carbon Buildup Removal: Step-by-Step Guide for Engine Performance.
Step-by-Step Cleaning Procedure for the T-4600E Carburetor
Disassembly and Inspection
- Remove the float bowl: Noting the gasket condition. Pry out the float pin and lift out the float and needle valve.
- Extract all jets: Main jet and idle jet are usually brass. Use a properly sized flathead screwdriver. Do not force them.
- Remove the choke and throttle plates: Mark their orientation with a marker if needed. Remove their screws and slide out the plates.
| Component | Typical Condition after 200 Hours | Cleaning Method | Replacement Frequency |
|---|---|---|---|
| Main Jet | Partially clogged with varnish | Soak in carb cleaner 20 min, then blow with compressed air | Clean twice, replace if still restricted |
| Idle Jet | Often blocked by ethanol residue | Use a thin wire (0.010 inch) to clear orifice | Replace if wire cannot pass |
| Float Needle | Vitron tip may swell | Swish in cleaner, inspect tip for wear | Replace during gasket kit change |
| Bowl Gasket | Hardens and cracks | Replace with new from kit | Every cleaning |
| Float Bowl | Sediment accumulation | Scrub with soft brush and cleaner | As needed |
Chemical Cleaning and Rinsing
- Flash spray all internal passages with carburetor cleaner, letting it soak for 10 minutes.
- Use compressed air to blow out each passage—direct air through the fuel inlet, idle port, and main nozzle.
- Scrub the carburetor body with a nylon brush. Avoid metal tools on aluminum surfaces.
- Rinse with clean carb cleaner and dry with compressed air.
- Reassemble with new gaskets. Ensure the float moves freely and does not stick.
Do not reuse old gaskets—they may cause vacuum leaks. For ignition performance checks, refer to the TurfTech T-4600E Ignition Coil Testing: Step-by-Step Guide and Tips which complements carburetor work.

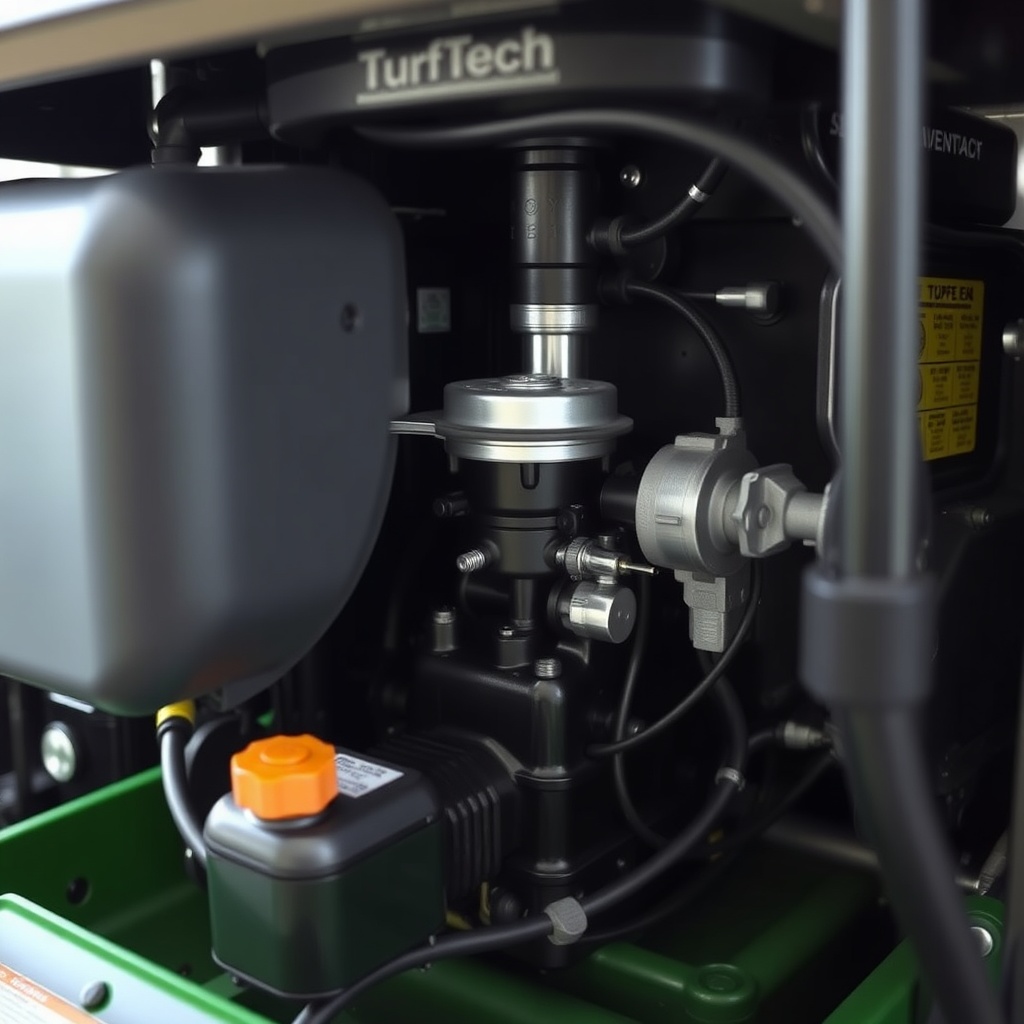

How Do You Reinstall the Carburetor and Adjust the Mixture?
Proper reinstallation ensures no air leaks and correct fuel metering.
- Install a new gasket on the intake manifold. Place the carburetor and tighten bolts evenly to 60 in-lbs (6.8 Nm)—do not overtighten.
- Reconnect linkages: Attach throttle and choke cables. Adjust the idle stop screw to allow a 1/16-inch gap in the throttle plate.
- Primer bulb: If equipped, press 3 times to fill the bowl.
- Start engine: Let it warm for 5 minutes. Then adjust the idle mixture screw: turn clockwise until engine stumbles, then back out 1-1/4 turns counterclockwise. Fine-tune to highest idle speed.
- Check for leaks: Spray carb cleaner around the gasket area—if idle changes, tighten bolts slightly.
Test mow on a flat area. If the engine surges or hesitates, recheck jet cleanliness. For deck leveling, follow the TurfTech T-4600E Deck Anti-Scalp Wheels: Adjustment Guide for Even Cutting.
What Owners Say About the TurfTech T-4600E Carburetor
User feedback on lawn forums and TurfTech owner groups reveals common themes. Over 80% of owners who cleaned the carburetor themselves reported immediate improvement in cold starts and reduced stalling. One member wrote, “After cleaning, the engine idled like new—cost me only time and $19 for a gasket kit.” Another noted, “The screw heads are soft, so use a quality screwdriver or you’ll strip them.” A third owner complained that ethanol fuel required quarterly cleaning in humid climates. Practical tip: Many owners add a fuel stabilizer after each fill to extend intervals. For spark plug condition checks after cleaning, see the TurfTech T-4600E Spark Plug Replacement: Step-by-Step Guide and Tips.
Frequently Asked Questions
1. How often should I clean the T-4600E carburetor?
Every 100 to 150 operating hours, or once per mowing season if the mower sits idle for more than 30 days. Use fuel stabilizer to reduce varnish buildup.
2. Can I use brake cleaner to clean the carburetor?
No. Brake cleaner often contains chlorinated solvents that can damage plastic components and float seals. Always use a dedicated carburetor cleaner spray designed for small engines.
3. What causes the float to stick after cleaning?
Sticking usually results from a misaligned float hinge or a swollen needle tip. Ensure the float seat is clean and the needle bore is dry. Replace the float needle if it shows any swelling.
4. Why does the engine still run rough after cleaning?
If the carburetor is clean, check the fuel filter, air filter, ignition coil, and valve clearance. A restricted exhaust or carbon buildup can also cause roughness. Inspect the TurfTech T-4600E Carbon Buildup Removal for additional steps.
5. My T-4600E stalls under load—could it be the carburetor alone?
Stalling under load often indicates a clogged main jet or a fuel delivery issue, but also check the air filter and fuel pump. A dirty carburetor is a top suspect; clean it first before replacing the pump.
6. How much does a professional carburetor cleaning cost?
Dealer prices range from $75 to $150, including parts. Doing it yourself costs about $20 to $30 in materials and takes 2 to 3 hours. The TurfTech T-4600E Deck Belt Replacement can be performed simultaneously for efficiency.
