Toro Recycler 22 Personal Pace Problems: Drive and Traction Troubleshooting
The Toro Recycler 22 with Personal Pace is a popular self-propelled mower, but its drive system can develop specific issues over time. This guide focuses on the most common traction and drive problems owners encounter, offering practical diagnosis steps and fixes you can perform yourself.
Why Does My Toro Recycler 22 Drive Engage but Then Slip?

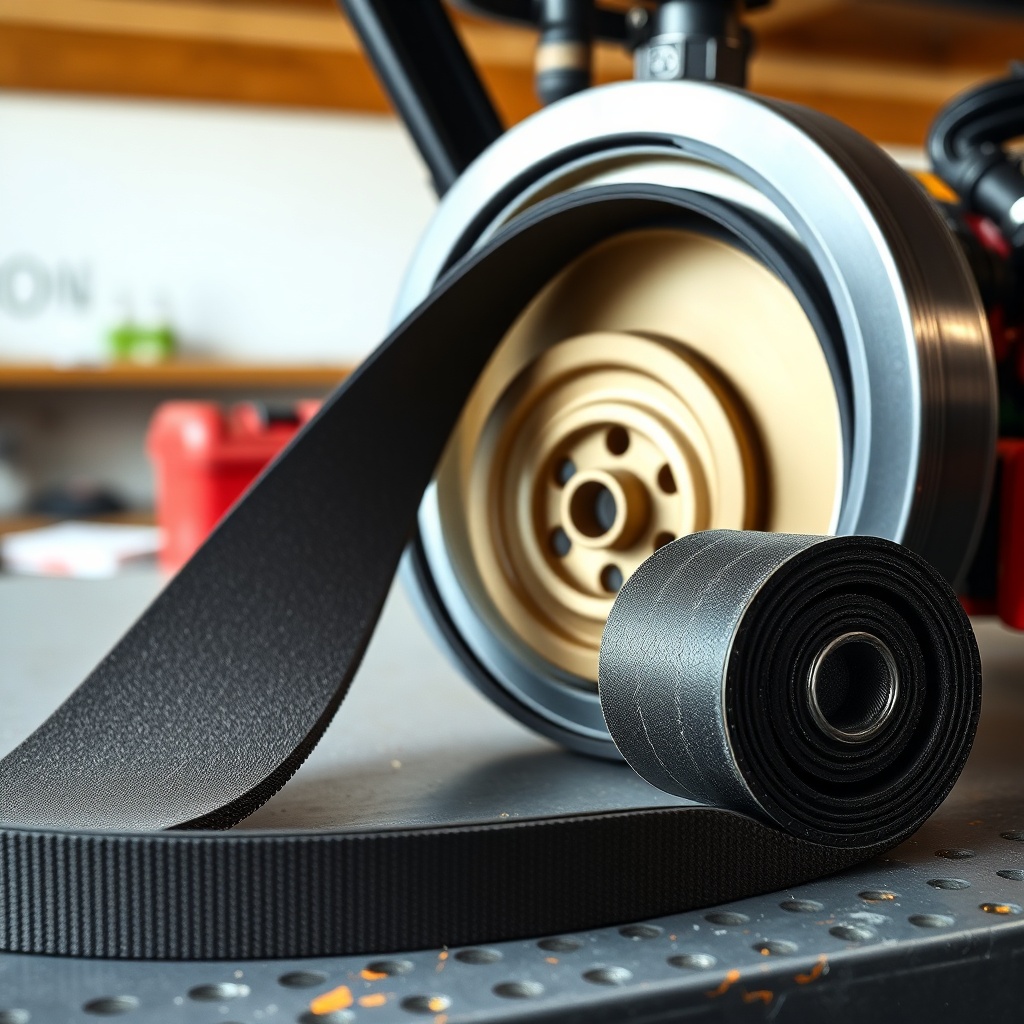

If the Personal Pace system engages but the mower loses forward motion, especially on hills or thick grass, the issue is typically traction belt wear or improper cable tension. The traction belt on the Recycler 22 is a 3L-section belt that drives the transmission input pulley. As the belt ages, it loses its grip, causing slip under load.
First, inspect the belt for cracking, glazing, or fraying. A worn belt will feel hard and smooth to the touch. Replace if you see any damage or if the belt is over three years old. Next, check the drive cable adjustment at the handlebar—the cable should have about 1/8-inch of free play before tension begins. If the cable is too loose, the idler pulley won’t fully engage the belt. Adjust the cable using the threaded barrel adjuster near the handle mount.
For persistent slipping even with a new belt, the transmission input pulley may have worn grooves. Inspect the pulley edges—sharp edges or shiny wear indicate replacement needed. A new OEM pulley costs about $12–$18 and is a straightforward swap.
Why Does the Personal Pace Handle Feel Stiff or Hard to Squeeze?
A stiff Personal Pace bail handle that requires excessive force to engage suggests a corroded or dry pivot point, or a binding drive cable. The bail handle mechanism has a spring-loaded pivot that should move freely with moderate hand pressure. Over time, grass clippings and moisture cause the spring and pivot to rust or seize.
Start by cleaning the pivot area with a stiff brush and applying WD-40 or a silicone lubricant to the spring and pin. Work the bail handle back and forth to distribute the lubricant. If the handle still feels stiff, disconnect the drive cable at the transmission end and move the bail alone—if it’s now smooth, the cable is the problem. If it’s still stiff, the bail pivot itself needs replacement (part number 108-9350, about $8).
Also check that the cable isn’t kinked or pinched along its routing under the deck. Use cable ties to secure it away from sharp edges. A binding cable can feel like a stiff handle but is actually caused by friction inside the housing.
Why Does My Toro Recycler 22 Move Forward Without Squeezing the Handle?
If the mower creeps forward even when you release the Personal Pace bail, the drive cable is too tight or the idler pulley spring is weak. This is a safety issue and should be addressed immediately. The cable should have slack so the idler pulley is fully disengaged when the bail is released.
Loosen the cable adjustment by turning the barrel adjuster to increase free play. Aim for at least 1/4 inch of cable slack when the bail is released. If loosening doesn’t stop the creep, the idler pulley spring may have lost tension and needs replacement (part number 108-6999, about $5).
In rare cases, the transmission’s internal brake mechanism (a small friction pad) may be worn out. If creep persists after cable and spring checks, the transmission may need to be rebuilt or replaced, which is typically a job for a Torco dealer.
| Symptom | Severity Level | Likely Cause |
|---|---|---|
| Drive engages but slips under load | Usually not urgent | Worn traction belt; cable too loose |
| Mower creeps forward without squeeze | Needs attention soon | Cable too tight; weak idler spring; failing transmission brake |
| Bail handle is very stiff | Not urgent (annoyance) | Corroded pivot; binding cable |
| No forward motion at all | Needs attention soon | Broken belt; sheared key on pulley; transmission failure |
| Erratic speed (surges forward) | Needs attention soon | Dirty or sticking governor on engine; cable misadjusted |
Why Does the Drive System Make a Grinding or Clicking Noise?
Unusual noises from the drive system often point to a failing transmission or a damaged gear. The Toro Recycler 22 uses a mechanical disc-and-pinion transmission (often a Peerless or Tuff Torq unit). A grinding sound during forward motion indicates the plastic internal gears have worn or cracked.
Stop using the mower immediately to avoid further damage. Drain the transmission oil (if it has an oil fill) and inspect for metal shavings—a sure sign of internal wear. Replacement transmissions are available for about $80–$120. Installation involves removing the rear wheel assembly and swapping the unit; this is an intermediate-level repair that takes 1–2 hours.
A clicking sound when turning the wheels by hand, without the engine running, often means a broken tooth on the ring gear. This requires transmission replacement. Clicking during operation only, however, may be a loose axle nut—check and tighten the nuts securing both rear wheels to 30–35 ft-lbs.
How to Replace the Traction Belt on a Toro Recycler 22
Replacing the traction belt is a common DIY task. Purchase a replacement belt (OEM 108-9346, about $18–$22) and a socket set. Follow these steps:
- Remove the spark plug wire for safety.
- Tilt the mower on its side (fuel cap up) and locate the belt around the engine pulley and transmission pulley.
- Release the idler pulley tension using a wrench on the idler arm bolt, then slide the old belt off.
- Route the new belt exactly as the old one was: around the engine pulley (grooved side in), around the transmission input pulley, and under the idler pulley.
- Re-engage the idler spring and rotate the engine pulley by hand to seat the belt.
- Adjust the drive cable after belt replacement—it often needs slight loosening.
Always consult your model’s manual for the specific belt routing diagram. Incorrect routing can cause rapid belt wear or failure.
What Owners Say About Toro Recycler 22 Drive Issues
Owners frequently report that the Personal Pace system works well for the first two seasons, then begins to slip. Many find that replacing the traction belt and cable ends the problem for another season or two. One owner on a forum said: “After three years, my Recycler 22 started slipping on the hill in my back yard. Changed the belt and adjusted the cable—now it’s like new.”
Another common observation is that the drive cable can corrode inside the housing after exposure to rain or wet grass. A few owners have replaced the cable with a stainless steel bicycle brake cable as a more durable upgrade. The bail handle pivot is another frequent complaint; some apply grease annually to keep it moving smoothly.
For more details on the engine powering this machine, see our Toro Recycler 22: In-Depth Look at the 190cc Briggs & Stratton Engine. For maintenance tips that prevent drive issues, read the Toro Recycler 22 Maintenance Schedule: Oil Change and Blade Sharpening.
Frequently Asked Questions
Why won’t my Toro Recycler 22 move forward at all?
If there’s no forward motion when squeezing the bail, check for a broken traction belt. Also inspect the drive cable—if it’s snapped, the idler pulley can’t engage the belt. In rare cases, the transmission may have failed internally.
How often should I replace the traction belt?
Every 2–3 seasons or when you notice slipping under normal mowing conditions. High-use mowers may need annual replacement.
Can I lubricate the drive cable?
Yes, but sparingly. Use a silicone-based spray lubricant inserted into the cable housing while working the bail handle. Avoid oil-based lubes that attract dust and grit.
Is it safe to use the mower with a slipping drive?
It’s not recommended. Slipping causes excess heat and can damage the belt or transmission pulleys. Fix the slip before continuing.
Does the Personal Pace system require special maintenance?
Annually lubricate the bail pivot pin and check cable adjustment. Keep the area around the transmission free of grass buildup that can overheat the unit.
Can I convert a non-self-propelled Recycler 22 to Personal Pace?
No, the frame and transmission mounting points differ. You would need a donor mower or complete retrofit kit that is often more expensive than buying a new self-propelled model.
