Introduction
Maintaining the correct engine oil type and change interval in your Toro Recycler 22 is essential for preserving the lawn mower’s performance and longevity. This guide provides expert recommendations on oil selection and service intervals tailored to the 190cc Briggs & Stratton engine found in most Recycler 22 models. Following these guidelines will help you avoid premature engine wear and ensure reliable starting season after season.
What Type of Engine Oil Does a Toro Recycler 22 Require?
The Toro Recycler 22, equipped with a 190cc Briggs & Stratton engine, requires SAE 30 viscosity oil for optimal performance in warm-weather mowing conditions. Always use a high-quality, detergent-based oil with an API service classification of SJ or higher. For exceptional protection, many owners choose synthetic SAE 5W-30 for its improved flow at lower temperatures and reduced engine wear, especially if mowing in spring or autumn.
Commercial-grade SAE 30 oil is the standard choice for this engine. Toro recommends Briggs & Stratton 30W or SAE 30 weight oil. Do not use multi-grade oils like 10W-40 in warm weather, as they can cause excessive valve deposits. The typical oil capacity for the 190cc engine is approximately 20 ounces (0.6 liters).
For more detailed engine specifications, see our Toro Recycler 22: In-Depth Look at the 190cc Briggs & Stratton Engine.
| Parameter | Specification |
|---|---|
| Viscosity (Summer) | SAE 30 (standard) |
| Viscosity (Cooler Temperatures) | SAE 5W-30 (synthetic or conventional) |
| API Service Classification | SJ, SL, SM, SN or higher |
| Oil Capacity | 20 oz (0.6 L) |
| Common Brand | Briggs & Stratton 30W |
| Alternate Brand | SAE 30 Deutz-Allis or equivalent |
How Often Should You Change the Oil in a Toro Recycler 22?
For standard residential use, Toro recommends changing the engine oil every 50 hours of operation or at the beginning of each mowing season, whichever occurs first. If you mow heavily, on dusty terrain, or under high grass loads, reduce the interval to 25 hours. The 190cc Briggs & Stratton engine’s life is directly tied to oil degradation, so following this schedule is critical.
Most average yards require about 1 to 2 hours per mowing. For a typical 0.5-acre lawn, that translates to roughly one oil change per season. However, if you log more than 100 mowing hours per year, change the oil at mid-season as well. A full maintenance schedule is available in our Toro Recycler 22 Maintenance Schedule: Oil Change and Blade Sharpening.
Step-by-Step Oil Change Procedure for the Toro Recycler 22
Changing the oil on a Toro Recycler 22 is a straightforward task that requires minimal tools. Follow these steps for a clean, effective oil change:
- Prepare the mower: Run the engine for 2–3 minutes to warm the oil, making it flow more easily. Then, turn the engine off and disconnect the spark plug wire for safety.
- Drain the oil: Position a drain pan under the oil drain plug located at the base of the engine (typically a 3/8-inch or 13 mm bolt). Remove the plug and allow the oil to drain completely (approximately 20 ounces).
- Replace the drain plug: Clean the plug threads and reinstall it, tightening to manufacturer torque specs (about 15–20 ft-lbs). Do not overtighten.

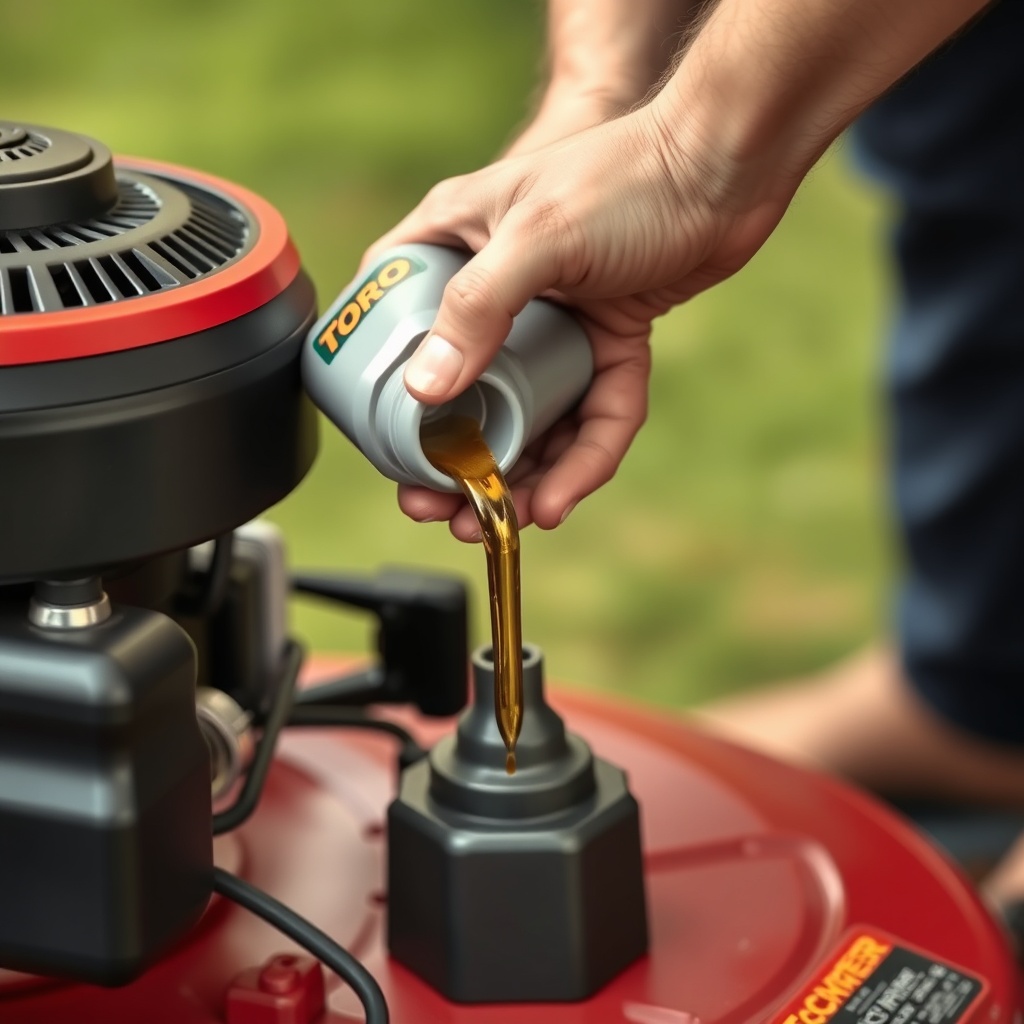

- Add new oil: Locate the oil fill cap/dipstick on the engine deck. Slowly pour in 20 oz of SAE 30 or SAE 5W-30 oil, checking the dipstick periodically to avoid overfilling.
- Check the level: Wipe the dipstick clean, insert it fully without threading, then remove to verify oil is at the “Full” mark. Crank the engine (without spark plug) to circulate oil, then recheck.
- Dispose properly: Transfer used oil to a sealed container and recycle at an auto parts store or local recycling center. Used oil filters (if applicable for this engine variant) should be changed annually.
For help with other common issues, see our guide on Toro Recycler 22 Personal Pace Problems: Diagnosis and Fixes.
What Happens If You Use the Wrong Oil in a Toro Recycler 22?
Using incorrect engine oil can lead to several performance and mechanical issues. Using a heavier viscosity oil like SAE 40 in summer temperatures can cause sluggish starting and reduced engine power due to increased internal drag. Conversely, using a lightweight oil like SAE 10W in high heat will not provide adequate lubrication, accelerating wear on piston rings and bearings.
Another common mistake is using synthetic oil labeled for automobiles that lacks necessary detergent additives for small engines. This can leave varnish deposits that clog oil passages. Symptoms of wrong oil use include excessive smoke, low compression, and engine knocking. In severe cases, it can lead to piston seizure or valve damage, requiring costly repairs. Always stick to SAE 30 or SAE 5W-30 specifically formulated for air-cooled engines.
Understanding the integrated cutting system can help diagnose performance issues related to oil use—read our How the Toro Recycler 22 Cutting System Works: Mulching vs Bagging for more context on mowing outcomes.

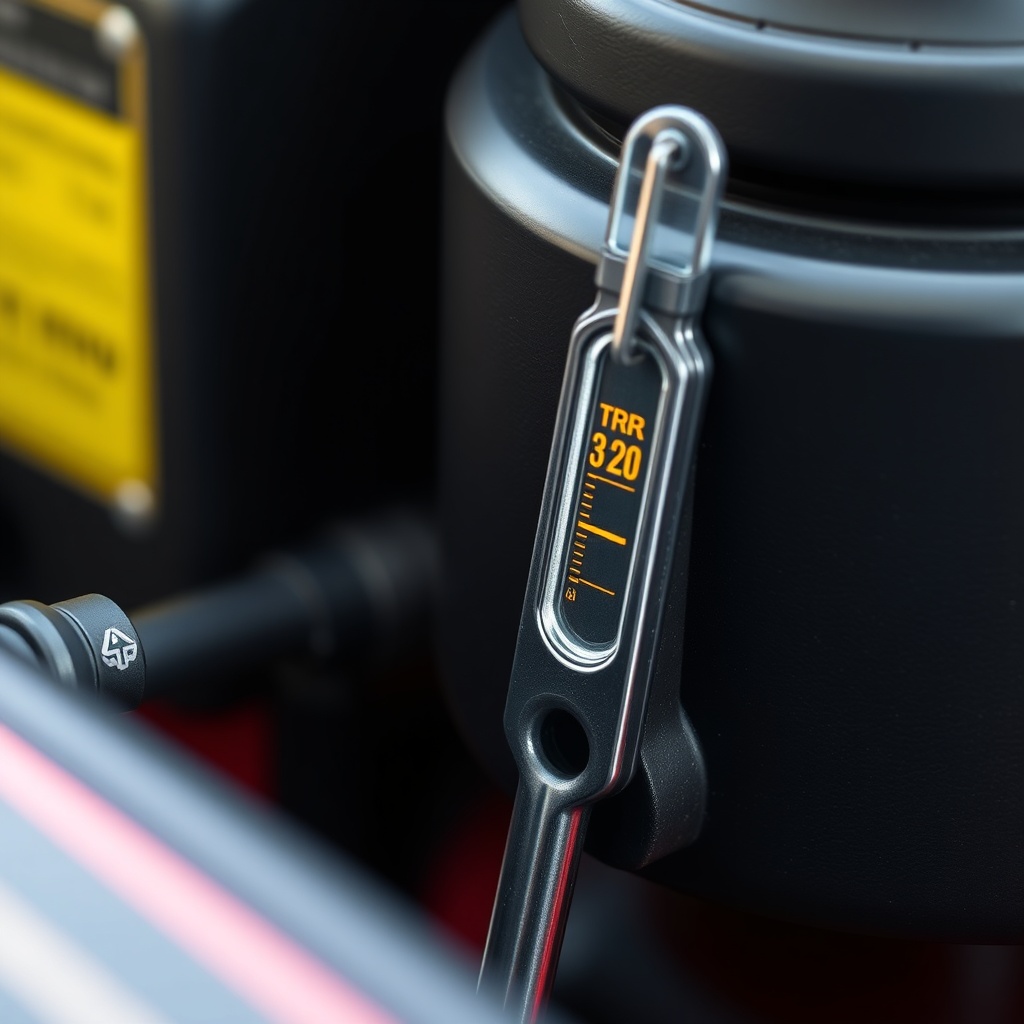

How to Check Oil Level on a Toro Recycler 22 Correctly
Checking the oil level accurately prevents both under- and over-filling. Here’s the correct technique for the Toro Recycler 22:
- Park on level ground: Place the mower on a flat, hard surface. If the lawn is uneven, results will be inaccurate.
- Clean the area: Wipe dirt and debris from around the oil fill cap to prevent contamination entering the crankcase.
- Remove the dipstick: Unscrew the cap/dipstick unit from the engine, usually located near the front of the engine.
- Wipe and reinsert: Using a clean, lint-free cloth, wipe the dipstick completely. Insert it fully into the tube without threading the cap (just rest it on the tube opening).
- Read the level: Remove the dipstick again and examine the end. The oil should be between the “Add” and “Full” marks. Add oil if below “Add,” but do not exceed “Full.”
- Final step: Reinstall the cap/dipstick securely. Check again after running the engine for 1 minute and waiting 5 minutes.
Checking the oil after every 5 hours of operation is a good practice to catch leaks early.
What Owners Say About Toro Recycler 22 Oil Changes
Owners generally report that changing the oil on the Toro Recycler 22 is simple and takes about 15 minutes. Many note that the accessible drain plug and straightforward fill point reduce mess. Several experienced owners recommend using synthetic SAE 5W-30 for noticeably smoother starting and quieter operation, especially in cooler spring mornings. The typical expenditure for a quart of SAE 30 oil is around $8 to $12 (USD) per season, making it a low-cost maintenance task. A few users mention that the dipstick can be difficult to read on newer models—they advise allowing the oil to settle for at least 5 minutes before checking. Overall satisfaction with the engine’s reliability is high when oil changes are performed regularly every 50 hours.
Frequently Asked Questions
1. Can I use synthetic oil in my Toro Recycler 22?
Yes, synthetic oil is safe and beneficial. Use SAE 5W-30 or SAE 30 synthetic that meets API SJ or higher. Synthetic provides better cold-start protection and extended drain intervals, but you should still change it every 50 hours for optimum engine health.
2. What is the exact oil capacity for the Toro Recycler 22 190cc engine?
The oil capacity is 20 fluid ounces (0.6 liters, approximately 0.63 quarts). Note that overfilling can cause oil to be ejected from the breather, leading to leakage or smoke.
3. How often should I change the oil if I mow a large lawn weekly?
For heavy use (e.g., 2 acres per week), you should change the oil every 25 hours. This may mean changing oil every 4 to 6 weeks during the mowing season to prevent sludge buildup from sustained high-load operation.
4. What happens if I don’t change the oil in my Toro Recycler 22?
Neglecting oil changes leads to thickened, contaminated oil that cannot effectively lubricate engine components. This causes accelerated wear on piston rings, camshafts, and bearings, eventually leading to engine failure requiring replacement of the 190cc engine, which costs $200–$300 (USD) plus labor.
5. Do I need to change the oil filter on a Toro Recycler 22?
Most Toro Recycler 22 models with the 190cc Briggs & Stratton engine use a splash lubrication system and do not have a replaceable oil filter. However, some later model variants may include a screen filter that should be cleaned annually. Refer to your owner’s manual for your specific model number.
6. Can I use 10W-30 oil in my Toro Recycler 22?
While 10W-30 is acceptable for cold weather starting, it is not recommended for continuous summer mowing above 32°C (90°F). The lighter viscosity at high temperatures can lead to increased wear. Stick with SAE 30 for standard conditions, or 5W-30 if you need a multi-grade alternative.
